L = watershed(I)
L = watershed(I, conn)
| Parameter | Description |
|---|---|
| I | Finite real 2-D or 3-D numeric or logical image. |
| conn | Connectivity, 4 or 8 for images, 6, 18, or 26 for volumes. The default value is 8 for images and 26 for volumes. |
| Parameter | Description |
|---|---|
| L | Double label array. Watershed ridge elements are set to 0. |
Compute watershed regions of a finite real 2-D image or 3-D volume.
Connectivity can be 4, 8, or an equivalent 3-by-3 matrix for images, and 6, 18, 26, or an equivalent 3-by-3-by-3 array for volumes.
Labels identify catchment basins, and watershed ridge elements are set to 0.

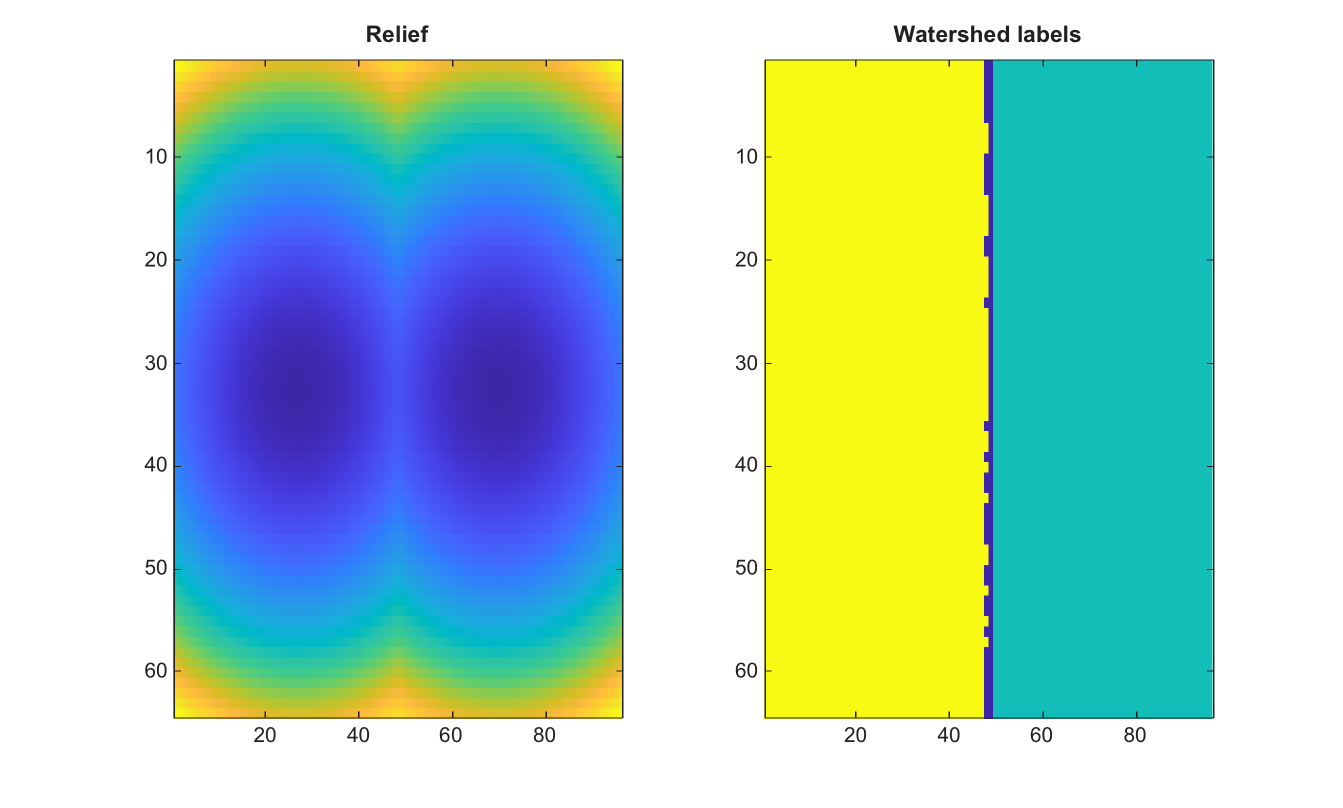

[X,Y]=meshgrid(linspace(-1,1,96),linspace(-1,1,64));
I=min((X+0.45).^2+Y.^2,(X-0.45).^2+Y.^2);
L=watershed(I,4);
figure; subplot(1,2,1); imagesc(I); title('Relief');
subplot(1,2,2); imagesc(L); title('Watershed labels');
| Version | Description |
|---|---|
| 2.0.0 | initial version |
