J = imreconstruct(marker, mask)
J = imreconstruct(marker, mask, conn)
| Parameter | Description |
|---|---|
| marker | Marker image. Values must be less than or equal to mask values. |
| mask | Mask image with the same size as marker. |
| conn | Connectivity, either 4, 8, or an equivalent 3-by-3 matrix. |
| Parameter | Description |
|---|---|
| J | Reconstructed image, cast like mask. |
imreconstruct repeatedly dilates marker under the constraint of mask until stability. It supports finite real 2-D grayscale and binary images.
mask=false(64,64); mask(18:46,18:46)=true;
marker=false(64,64); marker(32,32)=true;
J=imreconstruct(marker,mask,4);

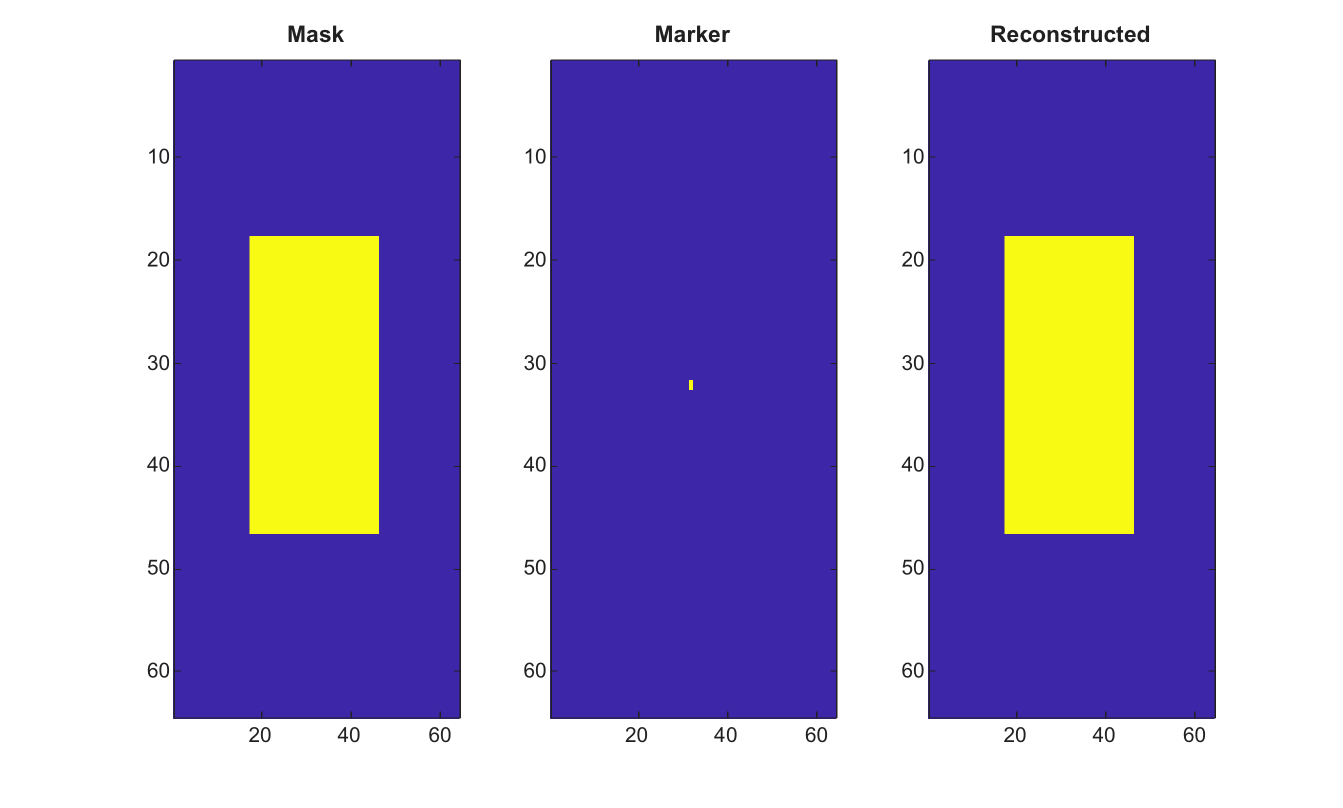

figure; subplot(1,3,1); imagesc(mask); title('Mask');
subplot(1,3,2); imagesc(marker); title('Marker');
subplot(1,3,3); imagesc(J); title('Reconstructed');
| Version | Description |
|---|---|
| 2.0.0 | initial version |
