Examples

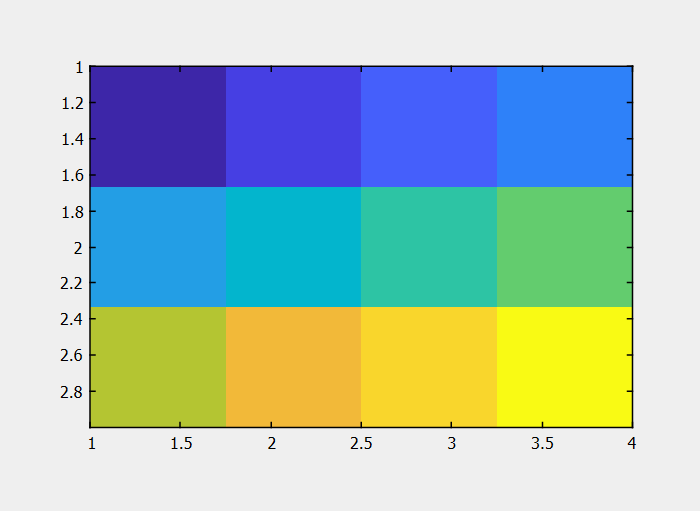

f1 = figure();
C = [0 2 4 6; 8 10 12 14; 16 18 20 22];
imagesc(C)

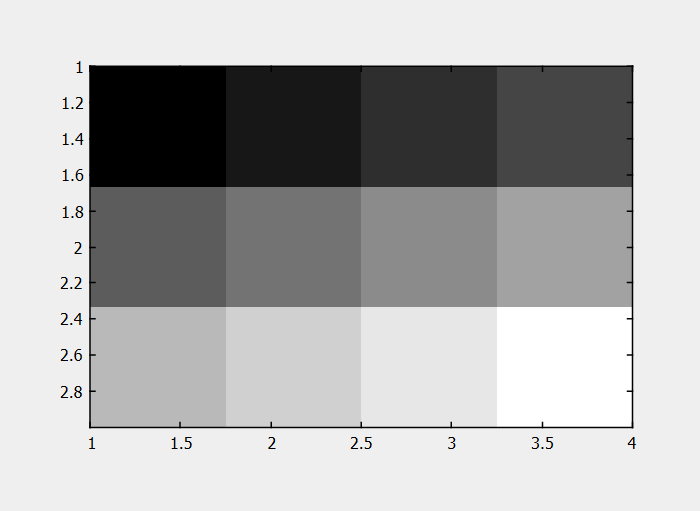

f2 = figure();
C = [0 2 4 6; 8 10 12 14; 16 18 20 22];
imagesc(C)
colormap(gray)
imagesc()
imagesc(C)
image(X, Y, C)
imagesc('CData', C)
imagesc('XData', X, 'YData', Y,'CData', C)
imagesc(..., propertyName, propertyValue)
imagesc(parent, ...)
go = imagesc(...)
| Parameter | Description |
|---|---|
| X | x-coordinates: vector or matrix. |
| Y | y-coordinates: vector or matrix. |
| C | Color array: m-by-n-by-3 array of RGB triplets. |
| parent | a scalar graphics object value: parent container, specified as a axes. |
| propertyName | a scalar string or row vector character. |
| propertyValue | a value. |
| Parameter | Description |
|---|---|
| go | a graphics object: image type. |
imagessc displays C data as an image. This image is colormapped using the colormap for the current figure.
Properties:
| Property | Description |
|---|---|
| AlphaData | Transparency data: scalar, array the same size as CData, or 1 (default). |
| AlphaDataMapping | Alpha data mapping method. |
| CData | Image color data: vector or matrix, 3-D array of RGB triplets. |
| CDataMapping | Color data mapping method: 'direct' or 'scaled' (default). |
| Children | []. |
| Parent | Parent: axes object. |
| Tag | Object identifier: string scalar, character vector, '' (default). |
| Type | Type of graphics object: 'surface'. |
| UserData | User data: array or [] (default). |
| Visible | State of visibility: 'off' or 'on' (default). |
| XData | Placement along x-axis: two-element vector, scalar, [1 size(CData, 1)] (default). |
| YData | Placement along y-axis: two-element vector, scalar, [1 size(CData, 2)] (default). |
| CreateFcn | Callback (function handle, string or cell) called when object is created. Set this property on an existing component has no effect. |
| DeleteFcn | Callback (function handle, string or cell) called when object is deleted. |
| BeingDeleted | Flag indicating that the object is being deleted. |
f1 = figure();
C = [0 2 4 6; 8 10 12 14; 16 18 20 22];
imagesc(C)f2 = figure();
C = [0 2 4 6; 8 10 12 14; 16 18 20 22];
imagesc(C)
colormap(gray)| Version | Description |
|---|---|
| 1.0.0 | initial version |
| 1.7.0 | CreateFcn, DeleteFcn callback added. |
| -- | BeingDeleted property added. |
